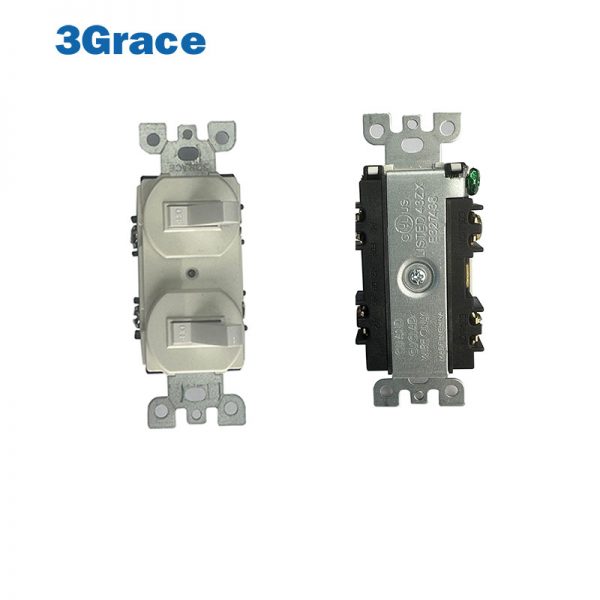

15A 120V Double Toggle Switch Wall Switch Comb. with Side Wire
FEATURES:
. Standard combination devices.
. Terminal screws backed out ready for wiring.
. All devices fit standard wallboxes.
. High-impact resistant thermoplastic construction.
. Washer-type break-off plaster ears for best flush alignment.
. Captive mounting screws.
. Easy-access green hex head ground screw.
. Side-wiring terminals accept #12 or #14 AWG Cu solid or stranded wire to ease installation
| Model | HS-2S |
| Max. Current | 15A |
| Max. Voltage | 120V |
| Mechanical Life | 100000 Times |
| Color | Various Colors Available |
| Combination | Two Toggle Switches |
| Power Source | Wired Electric |
| Operating Temperature | -40℃ To 75℃ |
| Environmental | Flammability UL94, V2 Rating |
| Wire Terminals | Side Wired |
| Warranty | 2 Year |
